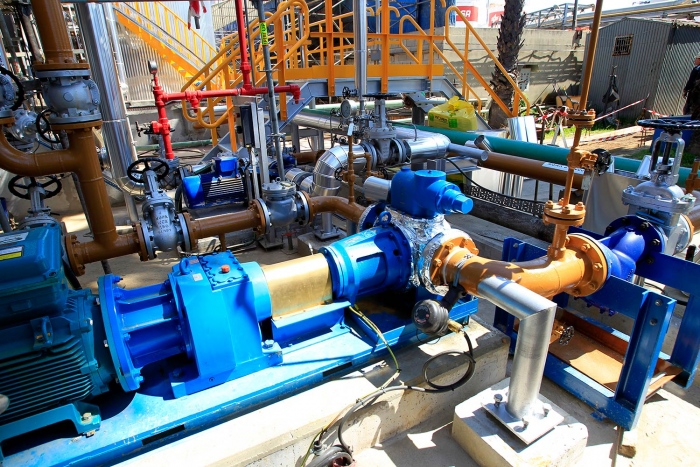

MSAR installation diagram close up
Thumbnail
MARK WHITTLE
General Manager, Refining
Quadrise Fuels International plc

Using proprietary MSAR® technology, hot residual oils are blended in-line with water and a bespoke formulation of speciality chemicals to produce a stable synthetic fuel oil.

HOW MSAR® IS PRODUCED

Stage one – Refinery Tie-ins & Residuals Supply

Oil residues are taken direct from refinery rundown lines and cooled to achieve the required viscosity (~200-400cSt @ 100-200°C typically) for the colloid mill.

Thumbnail

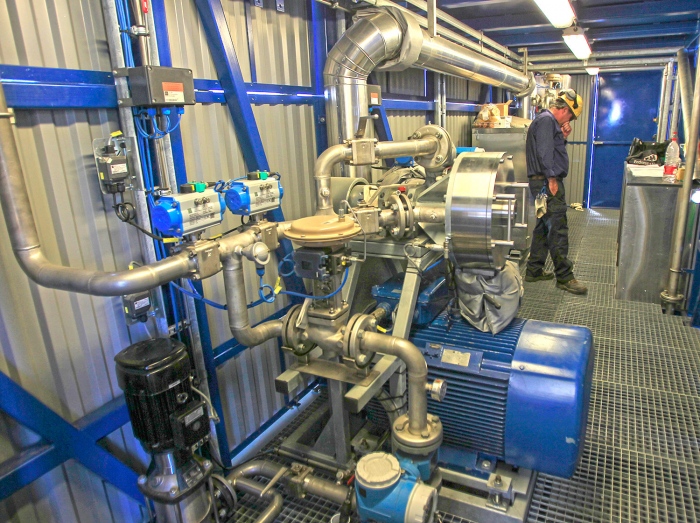

Close up of Colloid Mill
Thumbnail
MARK WHITTLE
General Manager, Refining
Quadrise Fuels International plc

Using proprietary MSAR® technology, hot residual oils are blended in-line with water and a bespoke formulation of speciality chemicals to produce a stable synthetic fuel oil.

HOW MSAR® IS PRODUCED

Stage two – In-Line Emulsification

Water, which can be derived from several utility waste-water sources, together with proprietary additives are added to the residue in a high-speed colloid mill under pressure.

Thumbnail

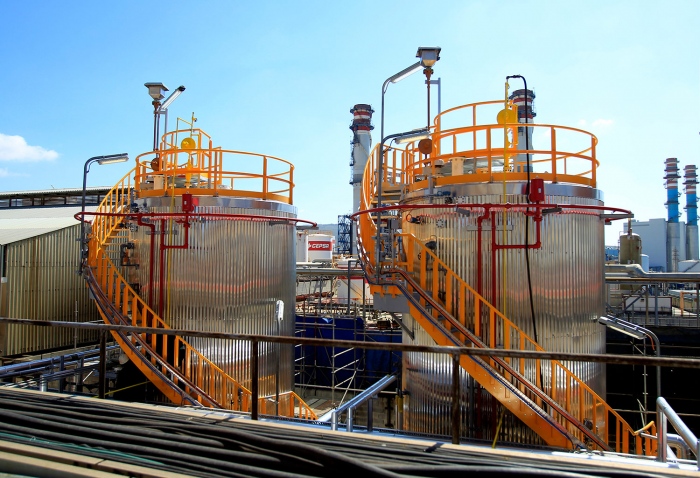

MSAR Storage tanks
Thumbnail
MARK WHITTLE
General Manager, Refining
Quadrise Fuels International plc

Using proprietary MSAR® technology, hot residual oils are blended in-line with water and a bespoke formulation of speciality chemicals to produce a stable synthetic fuel oil.

HOW MSAR® IS PRODUCED

Stage three – MSAR® Fuel Conditioning

The mixture is processed in the mill and cooled to provide highly stable oil-in-water fuel oil equivalent (~200cSt at 50°C) that can be run down to existing fuel oil tanks.

Thumbnail

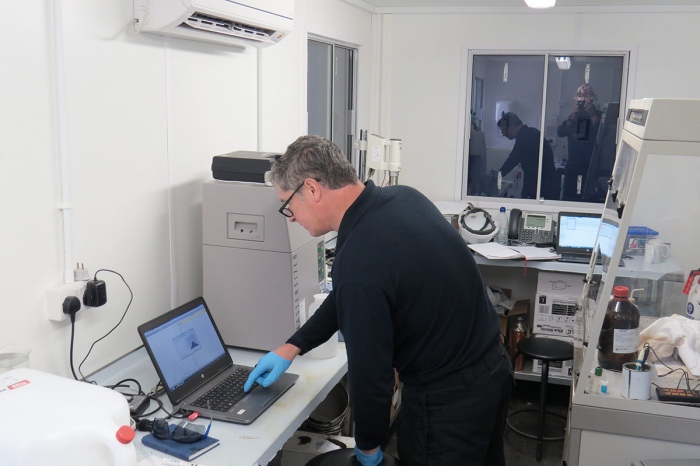

MSAR onsite Lab
Thumbnail
MARK WHITTLE
General Manager, Refining
Quadrise Fuels International plc

Using proprietary MSAR® technology, hot residual oils are blended in-line with water and a bespoke formulation of speciality chemicals to produce a stable synthetic fuel oil.

HOW MSAR® IS PRODUCED

End-to-end Management by Quadrise

Quadrise provides extensive Operational and Quality Control support covering all aspects of the production from feed supply, through production, storage and distribution. An extensive Quality Control Plan is developed in conjunction with all stakeholders and supported by on-site Quadrise Laboratory & QRF.
